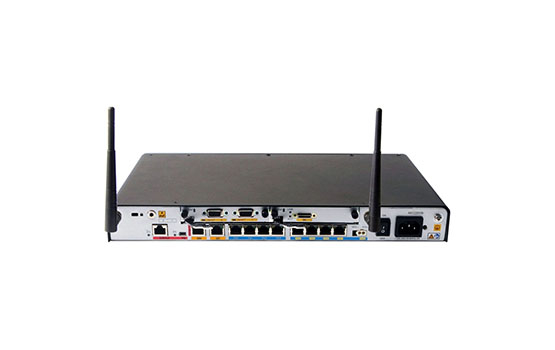

Маршрутизатор Huawei 02353528 [AR1220VW]

System parameters

Processor

Dual-core, 500 MHz

Memory

512 MB

Flash

256 MB

Micro SD card (default: sd1)

None

Hard disk

Not supported

Dimensions and weight

Dimensions (W x D x H)

• With no mounting bracket installed: 390.0 mm x 232.5 mm x 44.5 mm (15.35 in. x 9.2 in. x 1.75 in.), 1 U height
• With mounting brackets installed: 482.6 mm x 232.5 mm x 44.5 mm (19.0 in. x 9.2 in. x 1.75 in.), 1 U height

Weight

2.9 kg (6.39 lb)

Power specifications

Rated input voltage range (AC)

100 V to 240 V, 50 Hz/60 Hz

Maximum input voltage range (AC)

90 V to 264 V, 47 Hz to 63 Hz

Maximum input current

2 A

Maximum output power

60 W

RPS power supply

Not supported

PoE power supply

Supported (interfaces FE4 to FE7)

Power consumption (empty chassis)

Typical power consumption

37 W

Maximum power consumption

42 W

Heat dissipation

Fans

Built-in fans, not pluggable

Airflow (facing the front panel)

Left to right

Interface density

Management interfaces

1 (RJ45)

CON/AUX interfaces

1 (RJ45)

USB 2.0 interfaces

2

Service interfaces (standard configuration)

WAN interfaces: two GE electrical interfaces

LAN interfaces: eight FE electrical interfaces and two Wi-Fi antenna interfaces

Extended slots

2xSIC

Environment parameters

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Operating relative humidity

5% to 95%, noncondensing

Operating altitude

< 5000 m (16404.2 ft.)

Part number

02353528

Safety and Regulatory Standards

EMC standards

• CISPR32 Class A
• EN 55032 Class A
• CISPR24
• EN 55024
• ETSI EN 300 386
• AS/NZS CISPR32 Class A
• FCC Part 15 Subpart B Class A
• ICES 003 Class A
• IEC 61000-3-2
• EN 61000-3-2
• IEC 61000-3-3
• EN 61000-3-3
• GB 9254
• VCCI-CISPR32 Class A

Environmental standards

• RoHS
• REACH
• WEEE

Safety standards

• IEC 60950-1
• EN 60950-1
• UL 60950-1
• CSA C22.2 No 60950-1
• GB 4943.1
