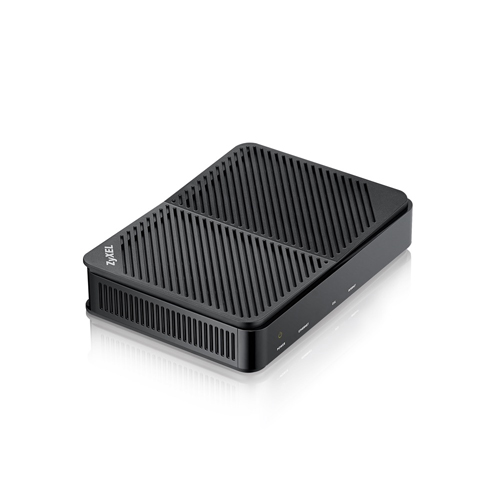

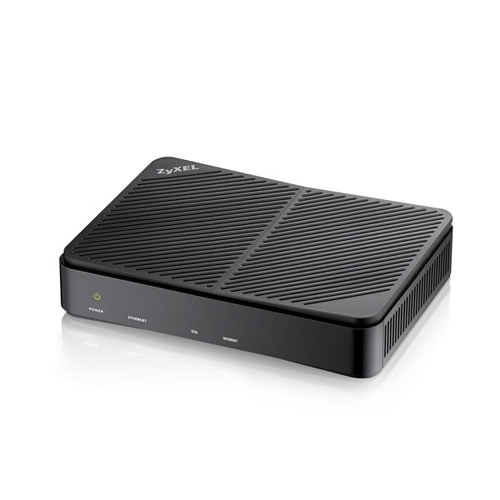

Модем-маршрутизатор SHDSL ZYXEL P-792H v3 [P-793HV3-RU01V1F]

• IP (RFC 791) routing is supported
• TCP, UDP, ICMP, IGMP v1 and v2, ARP, RIP v1, RIP v2
• Transparent bridging (IEEE 802.1D)
• PPP BCP (RFC 3185) support
• IGMP snooping

• Support ITU-T G991.2/G.994.1 standards
• TC-PAM line modulation
• Configurable as either server or client mode
• EFM/ATM auto detect
• OAM IEEE 802.3 chapter 57 compliant
• IEEE 802.3 2BASE-TL (aka 802.3ah) compliant
• Rate negotiating/manually rate adaptation configuration
• Connection loops: 1 pair (2 wires)
• Support IPoE
• Support PPPoE

• Multiple protocols over AAL5 (RFC1483)(Not support IPoA/PPPoA) support 1 PVC

• EFM mode compliant to IEEE 802.3
• PPP over Ethernet (RFC2516)
• Support of OAMPDU information and functionality (ITU-T Y.1731)
• OAMPDU event notification, variable request, variable response, loopback control
• VLAN base QOS (802.1P/Q)

• NAT (includes multi-to-multi NAT)/SUA, 8192 NAT sessions
• Port restricted cone NAT
• SIP ALG pass-through
• NAT server (Port forwarding)
• Multi-NAT
• Dynamic DNS (www.dyndns.org)
• DHCP server/client/relay

• User authentication (PAP, CHAP) with PPP (RFC 1334, RFC 1994)
• Microsoft CHAP
• Stateful packet inspection firewall
• Content filter
• Prevent denial of service
• Access control of service
• Real-time attack alert and log

• Web-based configuration
• Command-line interface
• Password-protected Telnet support
• SNMP MIB I/MIB II support
• TFTP & FTP firmware upgrade and configuration backup TR69

• IKE
• DES/3DES/AES encryption
• MD5/SHA1 authentication
• IPSec VPN keep-alive

• FLASH memory
• SDSL circuitry
• RAM
• LAN ports

• DNS proxy
• Syslog
• Each Ethernet port can be only tagged or only untagged

• 1 x RJ-11 interface for 2-wire G.SHDSL WAN port
• 4 x RJ-45 auto-sensing 10M/100M Ethernet LAN ports
• 1 x USB 2.0 host
• 1 x D-Sub 9 pin Female (DCE), RS232
• Power jack
• Power on/off switch
• Reset button
• Power consumption: 9 W Max.

• Item dimensions (WxDxH): 211 x 154 x 40 mm (8.31" x 6.06" x 1.57")
• Item weight: 445 g (0.98 lb.)
• Packing dimensions (WxDxH): 363 x 165 x 57 mm (14.29" x 6.49" x 2.24")
• Packing weight: 830 g (1.83 lb.)

Operating Environment

• Temperature: 0°C to 45°C (32°F to 113°F)
• Humidity: 10% to 90% RH (Non-condensing)

• Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 10% to 95% RH (Non-condensing)

• G.SHDSL gateway
• Power adaptor
• Ethernet cable
• Phone cable
• Quick start guide
