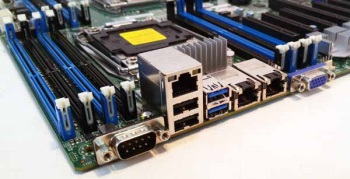

Материнская плата SuperMicro [MBD-X10DRH-CT-O]

X10DRH-CT (Retail Pack)

X10DRH-CT (Bulk Pack)

E-ATX

12″ x 13″ (30.5cm x 33.2cm)

Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP**)

Dual Socket R3 (LGA 2011)

Up to 22 Cores / Up to 55MB Cache

QPI up to 9.6 GT/s

16x 288-pin DDR4 DIMM slots

Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM

2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB

LRDIMM: 64GB, 32GB

3DS LRDIMM: 128GB

1.2 V

Corrects single-bit errors

Intel C612 chipset

LSI 3108 SAS3 (12Gbps) controller;
2GB cache; HW RAID 0, 1, 5, 6, 10, 50, 60

Supports up to 16 devices as default, more HDD devices support is also available as an option

SATA3 (6Gbps); RAID 0, 1, 5, 10

SATA3 (6Gbps); RAID 0, 1, 5, 10

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Intel X540 Dual Port 10GBase-T

Virtual Machine Device Queues reduce I/O overhead

Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output

1x Realtek RTL8211E PHY (dedicated IPMI)

ASPEED AST2400 BMC

8x SAS3 (12Gbps) ports

10x SATA3 (6Gbps) ports

2x RJ45 10GBase-T ports

1x RJ45 Dedicated IPMI LAN port

5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)

4x USB 2.0 ports (2 rear + 2 via header)

1x VGA Connector

2x Fast UART 16550 serial

2x COM Ports (1 rear, 1 header)

2x SuperDOM (Disk on Module) ports

1x TPM Header

SC826BE1C-R920LPB

SC826BE2C-R920LPB

SC826BAC4-R920LPB

SC216BE1C-R920LPB

SC216BE2C-R920LPB

SC836BE1C-R1K03B

SC836BE2C-R1K03B

SC835TQ-R920B

SC732i-865B

SC732D4F-903B

SC743TQ-1200B

SC847BE1C-R1K28LPB

SC847BE2C-R1K28LPB

SC846BE1C-R1K28B

SC417BE1C-R1K28LPB

SC417BE2C-R1K28LPB

SSG-6028R-E1CR12T

SYS-7048R-C1RT

SYS-2028R-C1RT

1x PCI-E 3.0 x16

6x PCI-E 3.0 x8

128Mb SPI Flash EEPROM with AMI BIOS

Plug and Play (PnP)

PCI 2.3

ACPI 1.0 / 2.0 / 3.0 / 4.0

USB Keyboard support

SMBIOS 2.7.1

UEFI 2.3.1

Intel Node Manager 3.0

IPMI 2.0

SPM

SUM

SuperDoctor 5

NMI

Watch Dog

ACPI / APM Power Management

Power-on mode for AC power recovery

Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.

6 Phase-switching voltage regulator

8x 4-pin fan headers (up to 8 fans)

8x fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Monitoring for CPU and chassis environment

CPU thermal trip support

Thermal Control for 8x Fan Connectors

Thermal Monitor 2 (TM2) support

PECI

CPU / System Overheat LED

Suspend static indicator LED

UID/Remote UID

Chassis intrusion detection

Chassis intrusion header

SDDC Support

RoHS

10°C — 35°C (50°F — 95°F)

-40°C — 70°C (-40°F — 158°F)

8% — 90% (non-condensing)

5% — 95% (non-condensing)
