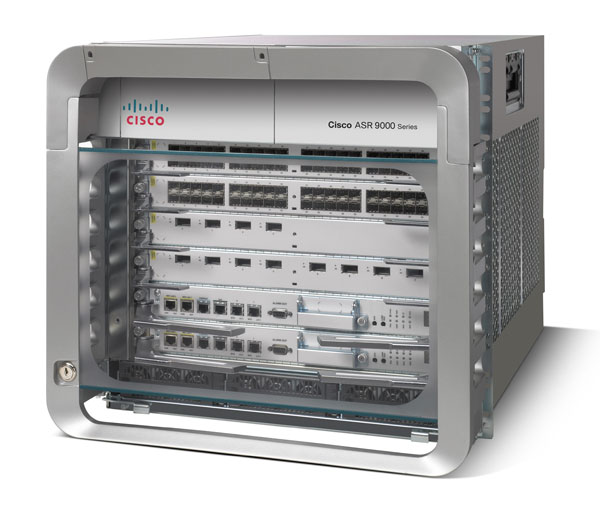

Шасси Cisco [ASR-9010-DC-V2=]

Physical specifications

Height: 36.75 in. (933.45 mm) (21 RU)

Width: 17.38 in. (441.45 mm)

Depth:

? With doors: 29.03 in. (737.4 mm)

? Without doors: 28.24 in. (717.3 mm)

Weight:

? 155.6 lb (70.73 kg) (chassis with PEM)

231.6 lb (105.27 kg) (fully loaded, excluding linecards and power modules) – RSP, two v2 fan trays, PEMs

Slot orientation

Vertical

Cisco ASR 9000 Series RSP

Dual redundant RSPs with integrated fabric in 2 slots

Cisco ASR 9000 Series line cards

8 line-card slots

“Commons” components

2 RSPs

2 fan trays

2 PEMs (either DC or AC)

1 fan filter

Reliability and availability

Fabric redundancy

Fan redundancy

Feed redundancy

Power-supply redundancy

RSP redundancy

Software redundancy

Rack mounting

19-in. default

21- and 23-in. adapters available

Note: Minimum 17.75-in. opening between posts is needed for proper operation

Cabinet mounting

Yes

Note: Doors not recommended in enclosed cabinets

Wall mounting

No

Airflow

Front-to-back

Performance

Fabric

One per RSP:

? Active/active nonblocking operation mode in dual-RSP redundant configuration

? Fully redundant in dual-RSP redundant configuration

? Built-in service-intelligence and traffic-prioritization capability

Thermal

Two fan trays:

? 12 high-efficiency fans per tray

? Variable-speed fans for optimal thermal performance

? No single point of failure

Power

Modularity

Pay-as-you-grow power for future scalability, available in AC and DC.

Multiple power module types:

? 6 kW and 3 kW AC power modules

? 4.4 kW and 2.1 kW DC power modules

Note: Mixing of AC and DC modules is not supported

Redundancy

? AC: N+N redundancy

? DC: N+1 redundancy

? Power module redundancy

? A/B Feed redundancy

? PEM redundancy

Power zones

No power zone restrictions

Fully load-sharing power infrastructure

Power input

Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum)

Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)

Power-module airflow

Front-to-back

Environmental Specifications (All Entries Applicable to Cisco ASR 9006 and ASR 9010)

Operating temperature (nominal)

41 to 104?F (5 to 40?C)

Operating temperature (short-term)

ASR 9010: 23 to 122?F (-5 to 50?C)

Operating humidity (nominal) (relative humidity)

5 to 90%

Storage temperature

-40 to 158?F (-40 to 70?C)

Storage (relative humidity)

5 to 93%

Operating altitude

-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)

Regulatory Compliance (All Entries Applicable to Cisco ASR 9006 and ASR 9010)

Network Equipment Building Standards (NEBS)

Cisco ASR 9006 and ASR 9010 Routers are designed to meet:

? SR-3580: NEBS Criteria Levels (Level 3)

? GR-1089-CORE: NEBS EMC and Safety

? GR-63-CORE: NEBS Physical Protection

? VZ.TPR.9205: Verizon TEEER

ETSI Standards

Cisco ASR 9006 and ASR 9010 Routers are designed to meet:

? EN300 386: Telecommunications Network Equipment (EMC)

? ETSI 300 019 Storage Class 1.1

? ETSI 300 019 Transportation Class 2.3

? ETSI 300 019 Stationary Use Class 3.1

EMC standards emission

Cisco ASR 9006 and ASR 9010 Routers are designed to meet:

? FCC Class 47CFR15 A

? ICES 003 Class A

? AS/NZS CISRP22 Class A

? CISPR 22 (EN55022) Class A

? VCCI Class A

? BSMI Class A

? IEC/EN 61000-3-12: Power Line Harmonics

? IEC/EN 61000-3-11: Voltage Fluctuations and Flicker

? EN55022: Information Technology Equipment (Emissions)

? EN 50121-4: Railway EMC

EMC standards immunity

Cisco ASR 9006 and ASR 9010 Routers are designed to meet:

? IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)

? IEC/EN-61000-4-3: Radiated Immunity (10V/m)

? IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)

? IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)

? IEC/EN-61000-4-5: Signal Surge Ports (1kV)

? IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)

? IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)

? IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)

? IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations

? EN55024: Information Technology Equipment (Immunity)

? EN50082-1/EN-61000-6-1: Generic Immunity Standard

? EN 50121-4: Railway EMC

Safety

Cisco ASR 9006 and ASR 9010 Routers are designed to meet:

? UL/CSA/IEC/EN 60950-1

? IEC/EN 60825 Laser Safety

? ACA TS001

? AS/NZS 60950

? FDA Code of Federal Regulations Laser Safety
