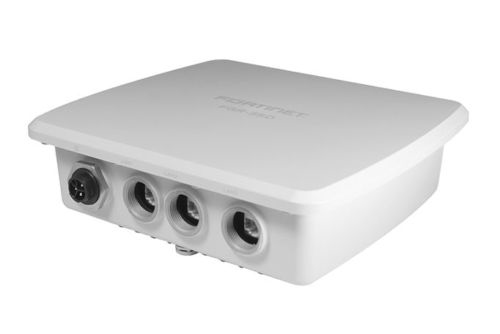

Межсетевой экран FortiGateRugged-35D [FGR-35D]

FGR-35D

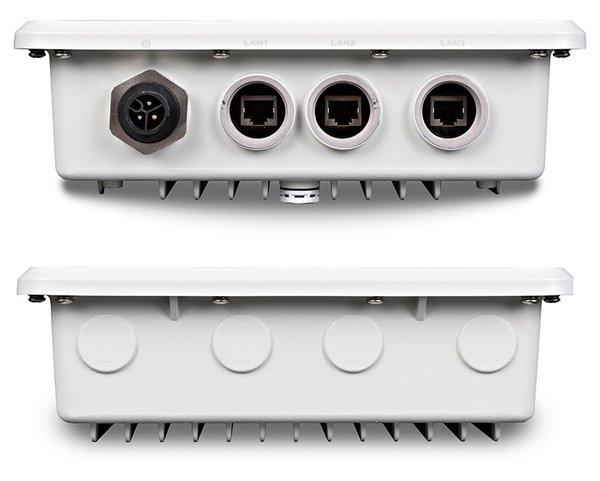

Interfaces and Modules

GE RJ45 Interfaces

3

GE RJ45 Bypass Pair

–

GE SFP Slots

–

Shared Media Pairs (GE RJ45 / GE SFP)

–

DB9 Serial Interface

–

USB (Client / Server)

–

RJ45 Console Port

–

Included Transceivers

None

System Performance and Capacity

IPv4 Firewall Throughput (1518 UDP)

550 Mbps

Firewall Latency (64 byte, UDP)

90 ?s

Firewall Throughput (Packets Per Second)

52.5 Kpps

Concurrent Sessions (TCP)

750,000

New Sessions/Sec (TCP)

5,000

Firewall Policies

5,000

IPsec VPN Throughput (512 byte)

45 Mbps

Gateway-to-Gateway IPsec VPN Tunnels

200

Client-to-Gateway IPsec VPN Tunnels

250

SSL-VPN Throughput

25 Mbps

Concurrent SSL-VPN Users (Recommended Maximum)

80

IPS Throughput (HTTP)

230 Mbps

Virtual Domains (Default / Maximum)

5 / 5

Maximum Number of FortiAPs (Total / Tunnel)

2 / 2

Maximum Number of FortiTokens

20

Maximum Number of Registered FortiClients

200

High Availability Configurations

Active-Active, Active-Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

3.07 x 10.04 x 10.04

Height x Width x Length (mm)

78 x 255.09 x 255.09

Weight

3.986 lbs (1.808 kg)

Form Factor

Outdoor mountable, IP67

Power Supply

Terminal block (12–48V DC)

Power Consumption (Average / Maximum)

10.2 W / 10.5 W

Maximum Current

0.83A

Heat Dissipation

35.81 BTU/h

Operating Environment and Certifications

Operating Temperature

-40–140°F (-40–60°C)

Storage Temperature

-58–185°F (-50–85°C)

Humidity

5–95% non-condensing

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class A, C-Tick, VCCI Class A, CE, UL/cUL, CB

Certifications

IEC 61850-3 and IEEE 1613 Emission Compliant ICSA Labs:

Firewall, IPsec, IPS, Antivirus,

SSL-VPN
