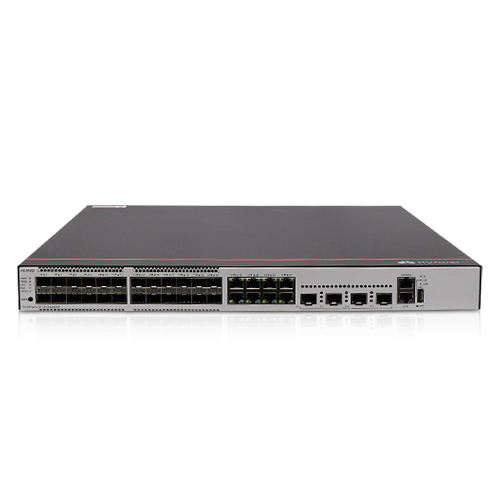

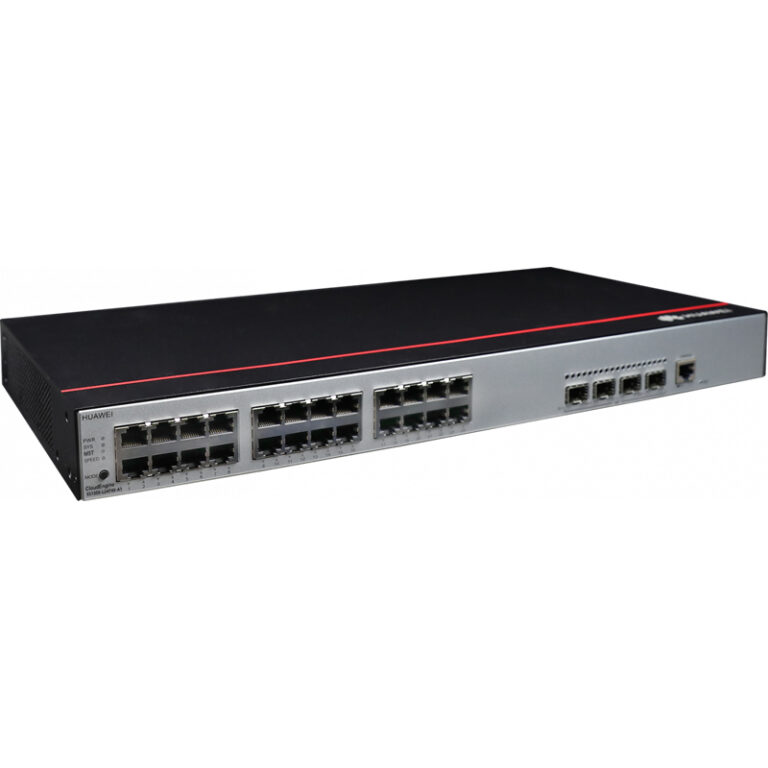

Коммутатор Huawei 98010938 [S5735-S24T4X]

Memory (RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

69.42 years

Mean time to repair (MTTR)

1.73 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

• Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
• Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)

• Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
• Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.)

Weight (with packaging)

7.21 kg (15.9 lb)

Stack ports

Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions)

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

• AC input: 100 V AC to 240 V AC, 50/60 Hz
• High-Voltage DC input: 240 V DC
• DC input: -48 V DC to -60 V DC

Maximum voltage range

• AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
• High-Voltage DC input: 190 V DC to 290 V DC
• DC input: -38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

46 W

• Tested according to ATIS standard
• EEE enabled
• No PoE power consumption

31 W

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 58.9 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

• EMC certification
• Safety certification
• Manufacturing certification

Part number

98010938
